GPU sharing and model slots¶

For the relationship between physical memory, free/unreserved budgets and model slots, see the memory and GPU-sharing diagram.

System → Hardware → GPU nodes → GPUs → GPU Configuration AMD / NVIDIA → GPU sharing provides the same administration for AMD and NVIDIA: Exclusive or Shared, a model-slot limit, transition status and explicit restart confirmation. The backend stays visible:

Provider	Exclusive	Shared
AMD	AMD device plugin	Experimental AMD DRA, one shared claim
NVIDIA	NVIDIA device plugin, one allocation	NVIDIA device-plugin time-slicing

The settings are independent, including on mixed NVIDIA/Strix Halo hosts. New installations use Exclusive · one model per GPU for both providers. Merely opening Hardware does not change either provider. Apply is enabled only when the selected mode or shared-model count differs from the current settings, including configurations that were not saved through this dashboard. Reverting an edit disables Apply again. The backend labels are DRA sharing configuration and Time-slicing configuration; no extra sharing checkbox is required. The final confirmation still explains model restarts and the lack of isolated GPU memory. Physical GPU accordions contain their memory layout first, device facts, then collapsed sharing controls. AMD runtime profile and shared-memory controls stay with the matching AMD GPU. A provider's single-device sharing form is never duplicated as independent controls on multiple same-vendor GPUs. Both sections start collapsed and can be opened independently. NVIDIA DRA, MIG and MPS are not enabled by these controls.

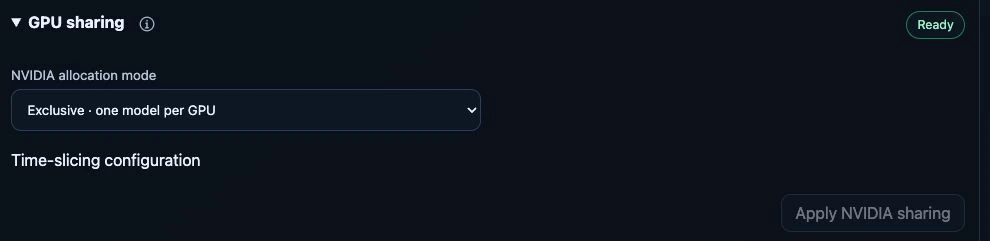

Unchanged NVIDIA configuration on the test appliance, 24 September 2026. Exclusive mode offers one model slot; opening this section did not apply a change.

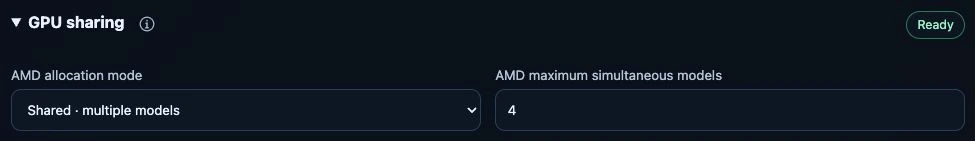

Existing AMD shared configuration on the same test appliance, 24 September 2026. Four slots are this device's saved setting, not the installation default or a guarantee that four arbitrary models fit. No sharing transition was requested.

Model-slot accounting¶

Models shows a segmented outer GPU ring with free/total slots; memory rings remain separate. Full GPUs are greyed out in the model form with a clear hint. GET /api/models includes slots on GPU memory devices and compute targets, plus engine-specific counts under engineAvailability. NVIDIA and exclusive AMD capacity comes from Kubernetes allocatable resources; AMD DRA uses the ready, node-identity-matched shared-claim limit. Desired but not yet ready DRA configuration does not advertise usable slots.

Enabled model activations reserve their replica slots before Pods exist. Matching KubeAI and direct Omni Pods replace those reservations, so they are not counted twice. Other GPU Pods, including validation workloads and terminating Pods, also count; completed Pods and deleted/disabled model intent do not. An enabled failed model retains its slot for retries. Removing a model releases its slot once its Pod has stopped. Slots are shared across engines, not inferred from RAM or VRAM.

Without confirmed physical placement, multiple GPUs on one node show a labelled Node slots pool, not an invented per-device assignment. Unscheduled intent is counted once per target and conservatively against eligible node/engine pools. The API rechecks availability before model writes (existing models can reuse their own slots). This is a scheduling snapshot, not an atomic Kubernetes resource allocation; the scheduler and sharing-controller admission remain authoritative if concurrent clients race for the last slot.

Initial scope and limits¶

One physical GPU on one selected, identity-checked node per provider. Multiple GPU nodes, multiple physical NVIDIA GPUs on that node and MIG are not managed by this first version; existing custom configurations are not silently adopted or overwritten.
Model namespace ai, one replica per model, and 2–16 shared model slots. Exclusive NVIDIA mode admits one model. Additional models wait, ordered by creation time and name; disabling/removing a model releases its admission slot.
AMD DRA requires Kubernetes 1.36 or newer, native mutating admission policies and CDI. Existing Strix Halo host/profile checks remain required.
AMD DRA uses ghcr.io/qualityminds/magicstick-amd-dra:v1.0.1-cdi-recovery.2, based on upstream v1.0.1 commit 9eb4e2ea386e34581524b0110e24769654fcb8d2. The AMD operator manages it instead of the mutually exclusive device plugin. The patch gives full GPUs a hardware-derived identity and restores volatile CDI files using this boot's device paths. Stale claims are quarantined without preventing registration or kubelet cleanup; see the recovery contract below. Publish the image with build-amd-dra-image.yml before deploying the reference.

This is cooperative sharing for trusted workloads. Models compete for compute, bandwidth and memory. A slot is not a memory partition, a guaranteed throughput share or a tenant-security boundary. Existing memory estimates, RAM requests and risk warnings remain in force. A successful small test is not a guarantee that two arbitrary large models fit together.

The vLLM-Omni Realtime profiles accept both sharing backends, using one slot per model and user-configured GPU-memory budgets. Shared replicas cannot form a two-physical-GPU stage plan. This does not change FreeToken's whole-GPU requirements. Omni planning estimates are advisory for experimentation; real free-slot and device-binding checks remain.

Common API and configuration¶

GET /api/hardware/gpu-sharing returns a providers array. Each entry includes provider, backend, mode (exclusive/shared), managed, experimental, availability, desired slot count, observed phase, node identity and admitted models. AMD also reports its device PCI address and shared claim. Administrator-only POST /api/hardware/gpu-sharing uses the normal CSRF checks, provider (amd/nvidia), mode, maxModels, nodeName, nodeUid, the current expectedRevision, acknowledgeSharing for shared mode and acknowledgeRestart. The dashboard supplies these acknowledgements only after the final confirmation, without a separate checkbox. The underlying AMD integration retains its bounded opt-in and hardware checks; its experimental API flag is not a label for Kubernetes DRA itself. The API stores bounded JSON in the selected ModuleActivation's spec.parameters.gpuSharing, not Appliance.spec:

amd-gpu: internal mode exclusive or dra-shared.
gpu: internal mode exclusive or time-slicing.

Generic module/profile edits preserve this separate setting; the dedicated API is the only dashboard write path. ModelActivation.status.gpuSharing records allocation mode and node, plus claim/PCI device for DRA. Model readiness remains separate from configuration readiness.

AMD backend¶

The operator stops only managed AMD KubeAI and Omni models before changing allocation backends. It retains their activations and downloaded model data; CPU and NVIDIA models are untouched. Unmanaged legacy AMD workloads block a backend change. After the DRA driver publishes matching ResourceSlices, the operator creates one namespaced ResourceClaim for the real device. Admitted models share it.

KubeAI's generated AMD resource profiles retain the existing CPU/RAM settings and selected node. A native, fail-closed admission policy attaches the claim only to marked AMD model Pods created by the KubeAI controller. An unadvertised sentinel resource prevents CPU fallback if that adapter is absent. Neither CPU nor NVIDIA profiles are rewritten by the AMD adapter. The direct Omni Deployment attaches the same shared claim itself, with no sentinel or admission shim and no extra amd.com/gpu request. Its admitted slot, namespace, node UID and claim readiness are checked before creation. The JSON patch uses plain JSON maps for claim-array values, with the composed claim variable explicitly cast to string for CEL's homogeneous map typing. Typed CEL objects inside those arrays can trigger a conversion panic in the Kubernetes 1.36 API server before a Pod is stored. Validate the adapter with a server-side dry run as the KubeAI ServiceAccount; checking policy creation alone is insufficient.

Optional Ollama/vLLM validation uses the same shared claim in ai, without privileged workloads or GPU host-path mounts. Validation is manually requested and does not gate normal GPU use.

NVIDIA backend¶

NVIDIA keeps its existing GPU Operator, ClusterPolicy, driver and device plugin. The shipped time-slicing-config ConfigMap contains immutable named profiles: magicstick-exclusive and magicstick-shared-2 through magicstick-shared-16. The Helm default is magicstick-exclusive. The legacy two-slot any profile remains available unchanged for existing installations. The operator switches only the selected node's nvidia.com/device-plugin.config label; NVIDIA's config manager reloads the named configuration. No external ConfigMap is overwritten.

Before a change, only managed NVIDIA KubeAI and Omni models are stopped. Their activations/downloads remain, and AMD/CPU models are untouched. Unmanaged NVIDIA GPU workloads block the change. The controller waits for a ready device-plugin Pod, the selected configuration label, matching nvidia.com/gpu.replicas and matching allocatable slots. Model profiles then request one nvidia.com/gpu allocation on the selected node, retaining their runtime, CPU settings and CPU-offloading RAM requests/limits. No DRA claim is added to NVIDIA Pods.

An existing MIG configuration, externally selected plugin profile or a ClusterPolicy pointing to a different ConfigMap blocks management without rewriting those settings. A changed node UID requires a fresh selection. The general mig.strategy=single/mixed setting alone does not imply active partitions: non-MIG cards with mig.capable=false remain eligible. MIG-capable cards using those strategies need corroborated all-disabled/success state; MIG resources, partition labels or a pending MIG configuration block management.

Upgrading older NVIDIA defaults¶

Before reconciling the new Helm default on an older installation, inspect the current ClusterPolicy, node profile label and advertised replica count. If the node still inherits the former any profile and that existing allocation should remain, pin nvidia.com/device-plugin.config=any on that node before the upgrade. Retain existing explicit or custom node profiles; do not overwrite them or infer a profile from an unknown configuration. New nodes without an explicit profile use the exclusive default. Changing an existing allocation remains a separate, confirmed Hardware action.

Recovery and diagnostics¶

Restart recovery and legacy migration¶

Full AMD GPU names derive from PCI address, vendor/device ID, partition profile and sysfs unique_id when a nonzero value is available. The upstream KFD location-derived ID is not treated as a hardware UUID. DRM cardN and renderDN numbering is resolved from current discovery, never from the DRA name. Without a hardware unique ID, the fallback identifies a PCI location and model, not an indistinguishable replacement at the same slot. PCI/topology or identity changes are not silently migrated. Partitioned AMD devices are outside this Magic Stick sharing profile; legacy partition checkpoints fail closed.

Checkpointed claims now contain their physical identity. On restart the driver regenerates CDI device nodes and permissions only for matching hardware. Invalid claims lose their stale CDI files but retain their checkpoint entries until kubelet calls Unprepare. The driver stays registered to process that cleanup. Known affected GPUs are withheld from ResourceSlices; an old checkpoint without physical identity conservatively withholds the whole AMD pool. Unprepare is idempotent, including after loss of /run/cdi, and republishes inventory after the last blocking claim has been released. No boot script clears checkpoints, and the plugin never infers that a shared claim has no remaining consumers. ResourceSlices publish the identity's SHA-256 digest to respect Kubernetes' 64-character attribute limit; the controller verifies it against the reported hardware fields before creating a shared claim.

The controller hashes hardware identity, node UID and namespace for new shared claim names. It retires older Magic Stick-owned claims only when their saved selection matches, reservedFor is empty and no Pod references them. Deletion uses UID and resourceVersion preconditions; a new claim waits until deletion is observed. Active, terminating, foreign or differently selected claims are not force-removed. Existing models using legacy claims must first stop normally. A lost kubelet checkpoint or uncertain consumer state requires operator review, not blind automatic cleanup. API errors leave allocation blocked.

Publish the recovery.2 image before deploying the controller reference. The first migration may briefly withhold AMD inventory while kubelet releases legacy claims. Do not roll back to recovery.1 with new-format active checkpoints: drain consumers and let kubelet unprepare all claims before downgrading. NVIDIA's driver, allocations and time-slicing configuration are unchanged.

Optional validation lifecycle¶

ai-system/magicstick-gpu-validation-history is a runtime-owned ConfigMap. Before creating a diagnostic Job, the controller durably consumes its manual request. Completed results and runtime image identity are saved before adding a 300-second Job TTL. Deleted/interrupted Jobs are reported as failed rather than recreated. A new explicit request is required to retry; host or image changes make prior results stale. Both legacy AMD and per-device AMD/NVIDIA diagnostics use this history. The legacy queue does not delete device-scoped Jobs. Inference eligibility remains independent of optional diagnostics.

History updates use resourceVersion concurrency checks. If history is unavailable or exceeds its 750,000-character safety bound, new diagnostics stop without discarding consumed requests, deleting unarchived Jobs or disabling GPU driver reconciliation. Export history before maintenance; do not clear it while saved validation requests remain active, as that would remove their retry protection.

Acceptance checks¶

The image build runs Linux Go tests for renumbered DRM nodes, missing/replaced GPUs, legacy/malformed checkpoints, repeated Prepare/Unprepare and isolation of known affected devices. Controller tests cover claim ownership, multiple/ending consumers, API failures, UID-guarded migration and persistent diagnostic history. An opt-in MAGICSTICK_TEST_LIVE_DISCOVERY=1 Go test reads real AMD inventory while keeping all checkpoint/CDI writes in temporary directories. It does not replace the release gate: cold/warm boot on a mixed AMD/NVIDIA host, restored ResourceSlices, normal shared-claim cleanup and successful model inference on both providers.

Changing allocation mode¶

Select Exclusive · one model per GPU and confirm the restart. For AMD, the controller stops managed AMD models, waits for claim consumers to release the GPU, removes its shared claims and restores the device plugin before resuming models. The reverse operation remains available if the selected hardware no longer qualifies. Do not remove the DRA driver while its Pods are still terminating: Kubelet needs the driver to unprepare their claims. If host evidence temporarily becomes stale, new DRA model admission is blocked but the driver stays on its selected node so existing claims can still be released. An eligibility-label change must not tear down that driver first.

Inspect compatibility.sharing in the appliance's AMD operator status for Switching, Starting, Ready or Blocked. Inspect the actual claim allocation and Pod events if models remain pending. A Blocked sharing setup is reported as Degraded / GpuSharingBlocked on the model, not as runtime startup. Inspect Pod events and controller logs; an amd.com/gpu extended resource is not expected while DRA owns allocation. The dashboard counts the physical DRA device once, not once per model slot.

For NVIDIA, the same action selects magicstick-exclusive, waits for one allocatable GPU slot and admits one model. Inspect Appliance.status.hardwareOperators.gpu.sharing, the selected node label and device-plugin/config-manager logs for progress. Neither path treats replicated slots as additional physical GPUs. This is not a NVIDIA DRA migration; that would require separate operator and hardware acceptance.
